BLE Sniffing

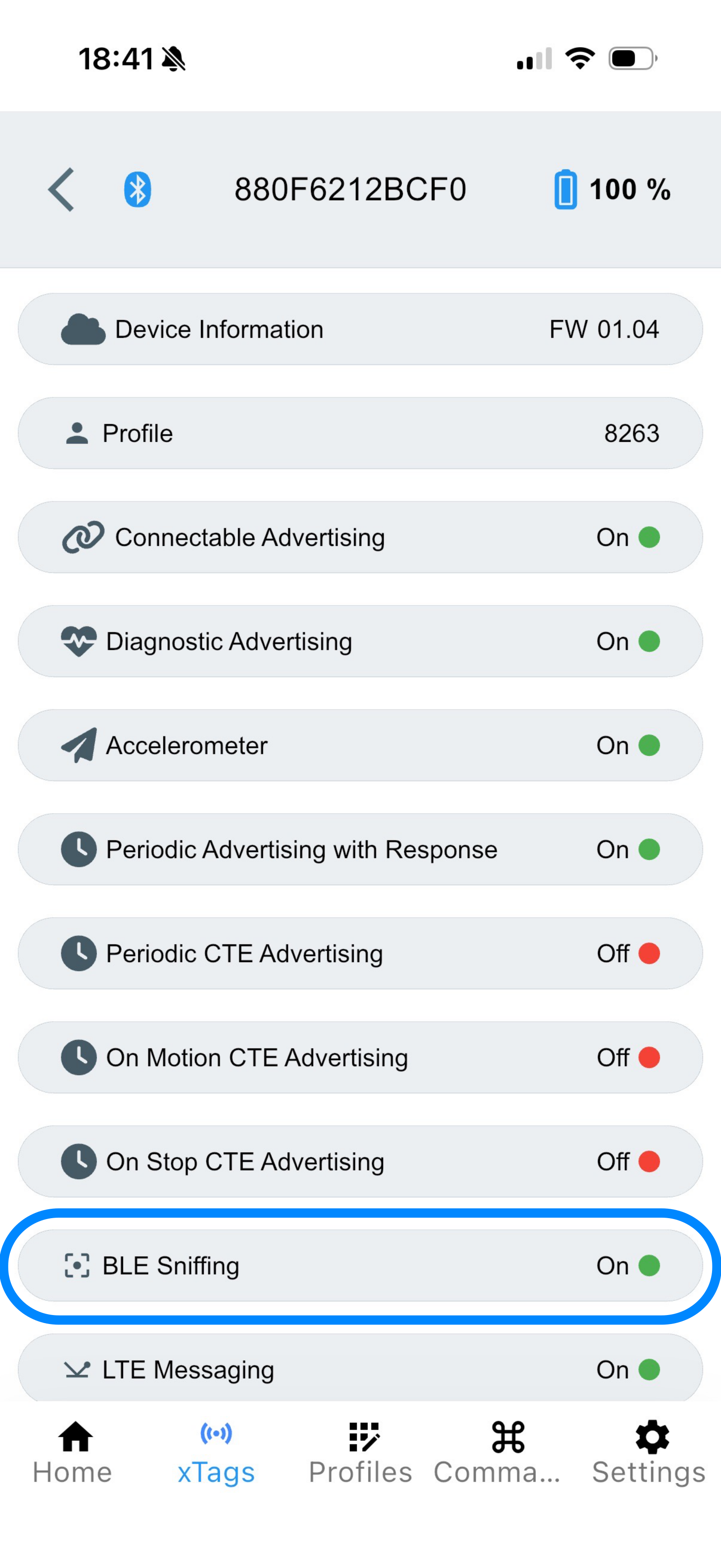

After a successful connection with the tag, BLE Sniffing must be selected.

Diagram

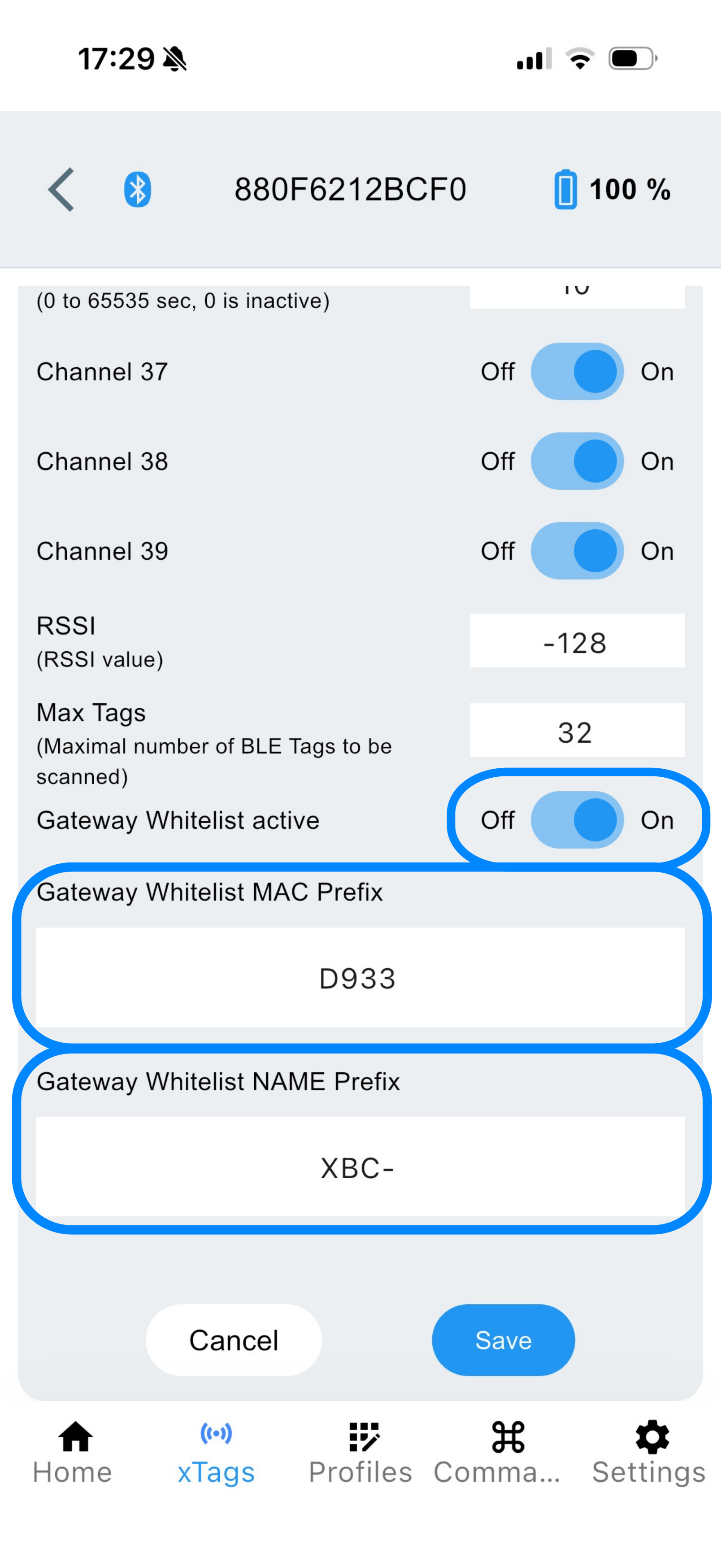

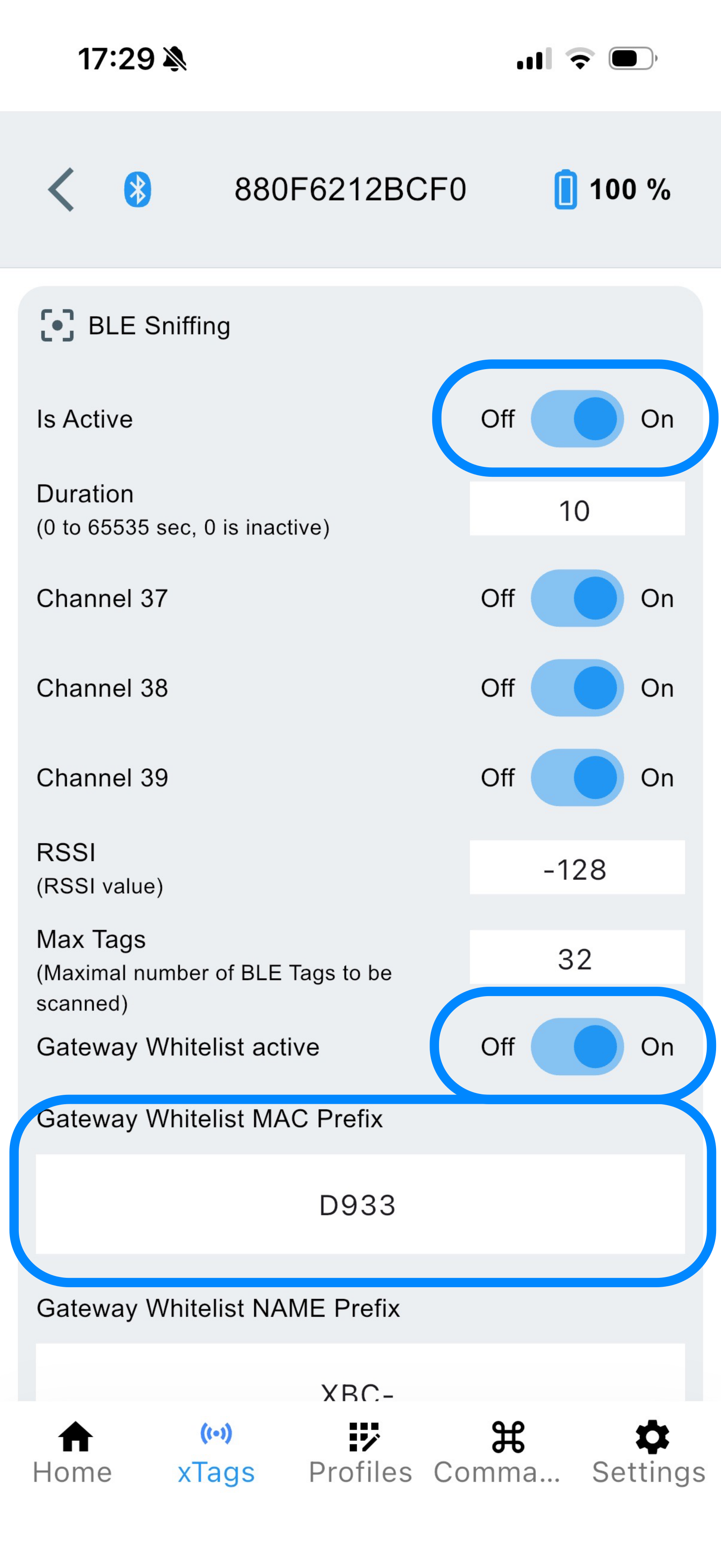

The following settings must be configured for a mobile tag with BLE sniffing.

Diagram Diagram

Characteristic	Value
Is Active	On
Gateway Whitelist active	On
Gateway Whitelist Name	Prefix of the mobile BLE only tags
Gateway Whitelist Name Prefix	XBC- (Prefix of the stationary BLE LTE tags

Characteristic

Value

Is Active

Gateway Whitelist active

Gateway Whitelist Name

Prefix of the mobile BLE only tags

Gateway Whitelist Name Prefix

XBC- (Prefix of the stationary BLE LTE tags
